Prroduct introduction

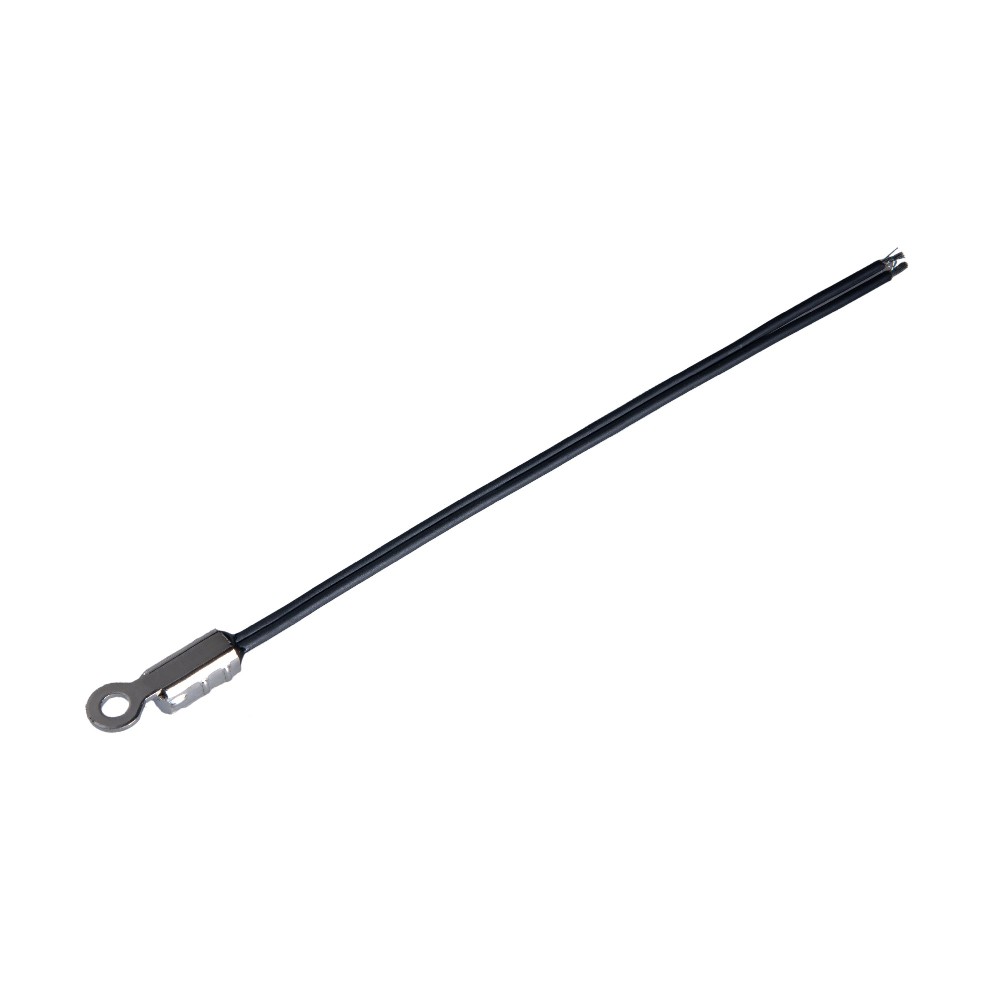

This product uses high-precision, high-stability single-end glass package NTC thermistor, temperature measurement accuracy is extremely high,

can be used continuously in high temperature environment, temperature probe adopts brass screw head, product stability, high reliability, fast thermal response, high sensitivity.

Product parameters

Resistance parameter: R25=100KΩ±2%

B_25/50=3990K±1%

Operating temperature: -40 to +260℃

Withstand voltage test: 1650V AC 2.0mA 5S

Insulation resistance: 500VDC 100MΩ

Response time: ≤10s

Operating voltage: 5±0.1VDC

Working current: ≤0.5mA
